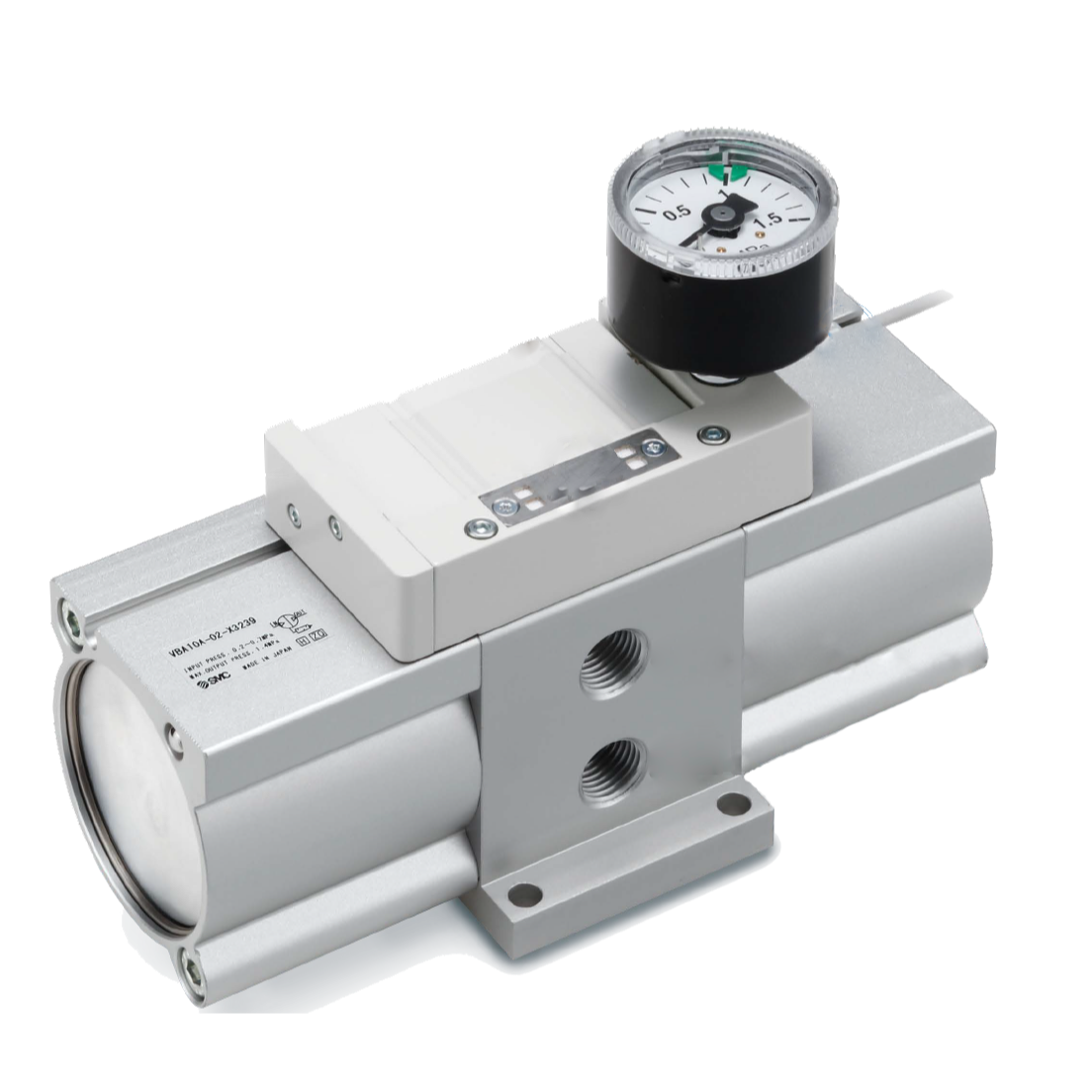

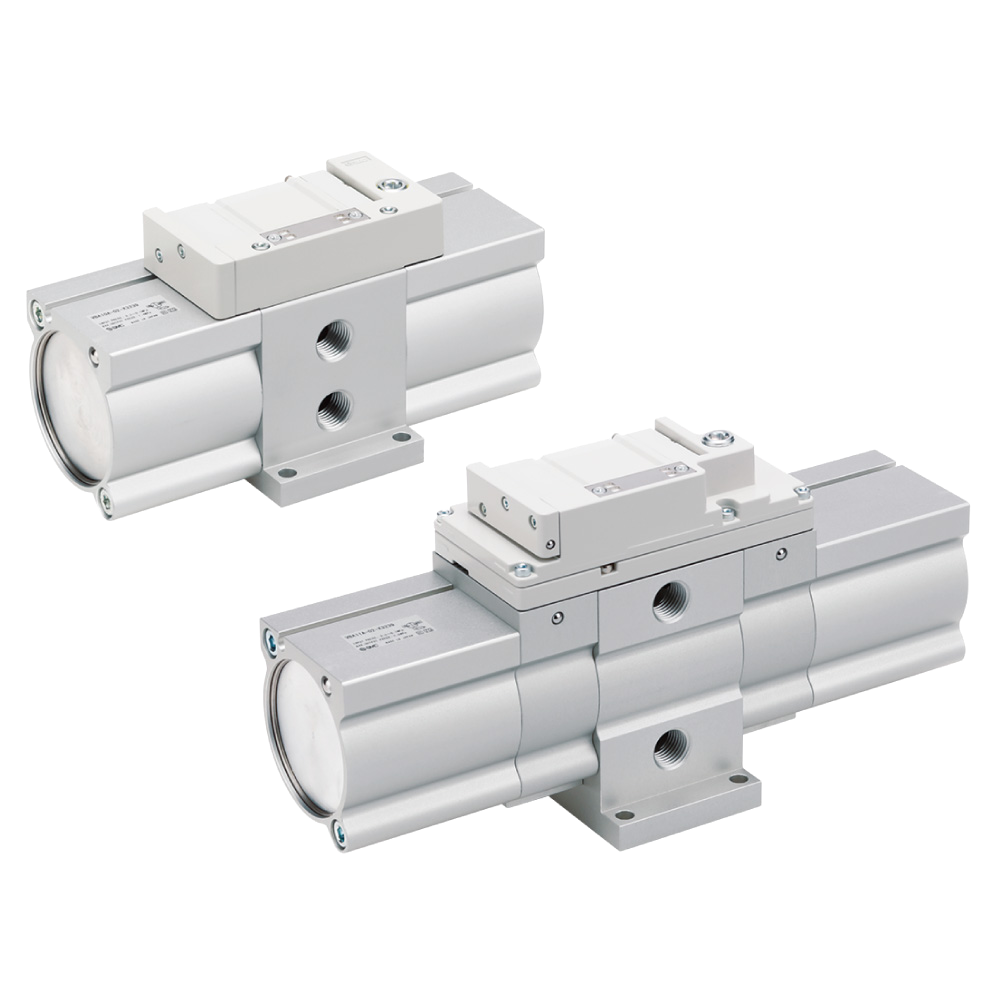

Pneumatic Boosters

Booster Regulators (pneumatic booster) are designed to take compressed air pressure and to increase it to a pressure that exceeds the input pressure using part of the input flow of compressed air. Booster Regulators can have boost ratios of up to two time the input pressures depending on brand and model available.Higher Ratios are available for special built units. They are not normally used where a continuous flow (production applications) of high pressure air is required - however ideal where an occasional high pressure supply is required.

Lower Capital Cost: Intensifiers can be a low cost alternative to running your full system at higher pressures. When compared to installing a full high pressure compressed air system, there are potential savings of thousands of dollars in capital expenditure.

Reduced Operating Costs: Not only will you save energy or fuel ($$) you can also reduce your overall system pressure and only deliver high pressure compressed air to the small applications that requires it.

Model Specifications

Model

Silencer

Pressure
Increase Ratio
Max. Input
Pressure
Pressure
Guage
Port
Connection
Min. Operating
Temperature
Max. Operating
Temperature
Weight

VBA10A-F02 1:2 1 MPa G ¼" +2° +50° 840g
VBA10A-02GN 1:2 1 MPa Rc ¼" +2° +50° 840g
VBA20A-F03GN 1:2 1 MPa G ⅜" +2° +50° 3.9kg
VBA11A-T02GN-Z 2:4 1 MPa NPTF ¼" +2° +50° 890g
VBA40A-04GN 1:2 1 MPa RC ½" +2° +50° 8.6kg
VBA11A-F02GN 2:4 1 MPa G ¼" +2° +50° 890g
VBA20A-03GN 2:1 1 MPa Rc ⅜" +2° +50° 3.9kg
VBA20A-F03 2:1 1 MPa G ⅜" +2° +50° 3.9kg
VBA40A-F04 2:1 1 MPa G ½" +2° +50° 8.6kg
VBA10A-F02GN 2:1 1 MPa G ¼" +2° +50° 840g
VBA11A-F02 2:4 1 MPa G ¼" +2° +50° 890g
VBA11A-02GN 2:4 1 MPa Rc ¼" +2° +50° 890g
