Diesel Screw Compressors

FS Curtis Box Type Diesel Screw Compressors

The FAC Series from FS-Curtis comprises a range of heavy duty, portable diesel air compressors offering superior efficiency, quality and reliability in an environmentally responsible manner. Each model's fuel consumption and noise emission levels are amongst the best in class. There is a wide selection of 34 models including box and trailer type configurations, continuous duty outputs from 1.2 to 36 m3/min (55 to 1,300 cfm), and working pressures from 7 to 24 bar (100 to 350 psi).

A factory installed aftercooler option is available for most of the 7 bar compressors.

All models are based on well proven designs that are market leaders in their home territory of Japan and widely distributed throughout the rest of the world. Thousands of these units are already working under the most demanding conditions in construction, mining and industrial applications. With a comprehensive array of standard features, the FAC Series compressors represent outstanding value for money in capital investment terms. And their high levels of fuel efficiency and reliability deliver whole-of-life operating costs that are amongst the lowest available.

Series Specifications

FS Curtis
Model
FAD
cfm
Rated Pressure
bar
Max. Pressure
bar
Aftercooler Engine Fuel Consumption
L/h @ 100% Load
Noise Level
@ 7m
Weight
kg
FAC-16B 55 6.9 9 n/a Shibaura E673L-D 3.5 64 350
FAC-21P 75 6.9 9 option available Shibaura S753-D 5 64 465
FAC-28B 390 7 6.9 option available Izuzu DD-4BG1T 22 69 2040
FAC-37B 100 6.9 9 option available Shibaura S773L-D 6 66 475

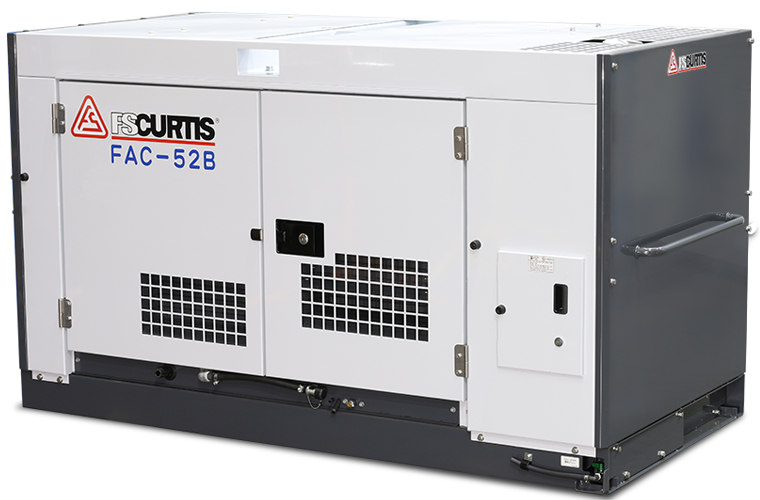

FAC-52B 175 7 9 n/a Hino J08C-UT 9.7 67 840

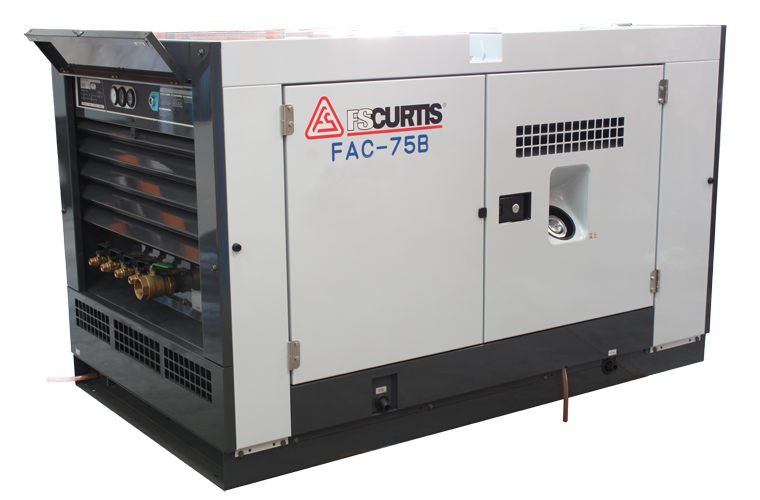

FAC-75B 265 6.9 9 n/a Yanmar 4TNV98T-NHK 9.5 69 1290
FAC-110B 390 7 9 option available Isuzu DD-4BG1T 22 70 1870
FACG-360B 1330 12.7 15.5 n/a Mitsubishi S6B3-PTA 81 72 8800
